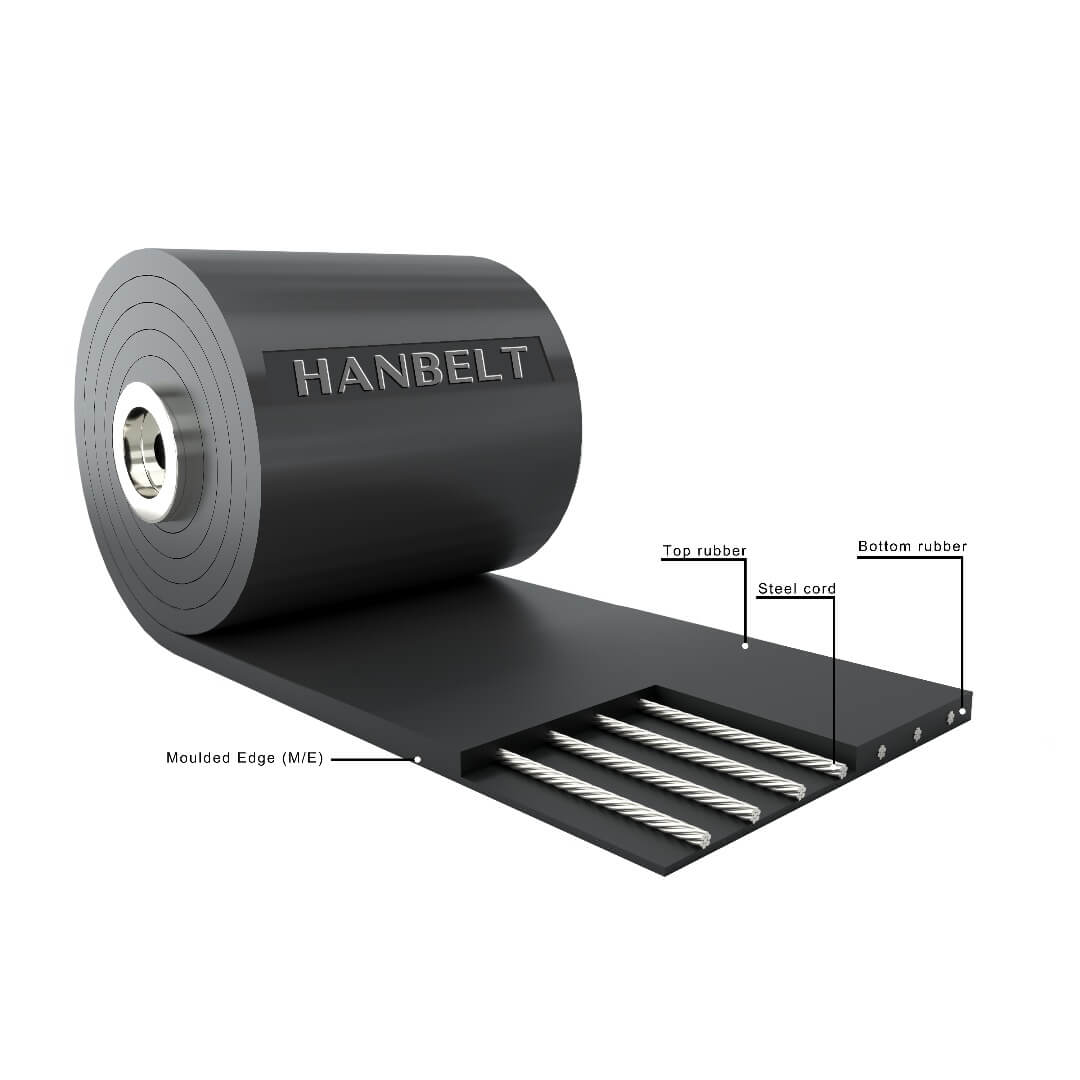

Steel cord conveyor belt
1.Reinforcement: Steel cord
2.Width,length: Width: 500mm-2000mm. Length: (100m-300m)/roll
3.Standard : DIN22102(Z,W,Y,X) AS1332(N.M),RMA (Ⅰ,Ⅱ)
4.Application: Suitable for large span,heavy duty ,long distance material’s transfer
| Class | Warp N/mm | Cover thickness (mm) | Width range(mm) |
| ST630 | 630 | 5.0+5.0 | 500-1200 |
| ST800 | 800 | 5.0+5.0 | |
| ST1000 | 1000 | 6.0+6.0 | |
| ST1250 | 1250 | 6.0+6.0 | |
| ST1600 | 1600 | 6.0+6.0 | 1000-1400 |
| ST1800 | 1800 | 6.0+6.0 | |
| ST2000 | 2000 | 6.0+6.0 | 1400-2000 |
